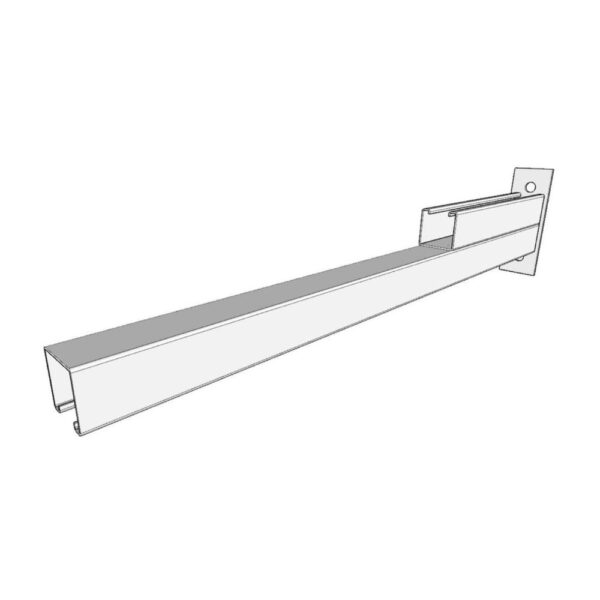

Half Double – 254 Series
Cantilever arm with half-double channel profile, HDG finish. Lengths 650, 850, 1050 mm. DUL up to 200kg.
- Description
- Table
- Additional information
Description
This 254 Series Half Double arm gives you a stiff, weight-efficient support for trays, pipes and services. The half-double profile increases moment capacity without the mass of a full double channel, and the hot-dip galvanised finish delivers long-term corrosion resistance for warehouses and coastal installs.
Key Benefits
-
Length options 650, 850, 1050mm to suit span and load
-
HDG protection for outdoor and harsh environments
-
Pre-drilled backplate for rapid fixing
-
Compatible with standard channel nuts, tray clamps and pipe clips
Applications
-
Wall mounting of cable tray, ladder and trunking
-
Pipework and conduit runs for HVAC and fire services
-
Plant support in factories, data centres and car parks
-
Retrofit strengthening where space and weight are limited
Choose Advanced Strut
For reliable steel beams and all your structural steel needs, make the advanced choice. Choose Advanced Strut, your local expert South African steel supplier.
| Length (A) mm | 650 | 850 | 1050 |
| Mass (kg) | 3.4 | 4.2 | 5.1 |
| Design Uniform Load (kg) | 200 | 160 | 130 |
| Finish | HDG | HDG | HDG |
Additional information
| Length | 650mm, 850mm, 1050mm |
|---|
