190 Storm Indicator
R0,00

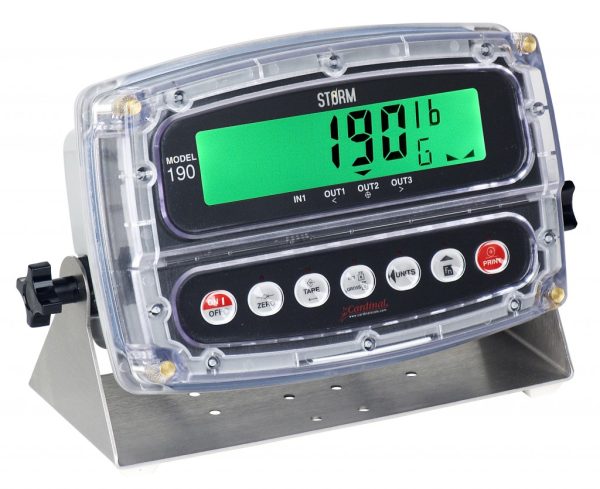

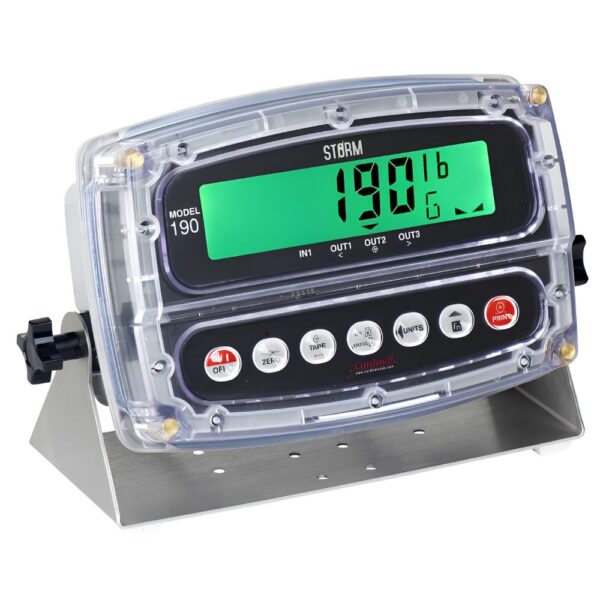

The 190 Storm Indicator is a rugged washdown weight indicator designed for extreme weighing environments. It features an IP69K-rated enclosure, capacitive touch keys, a large backlit LCD display, and built-in RS232 communication.
- Description
- Product Specifications
Description
The 190 Storm Indicator is built for harsh industrial weighing applications where water, pressure cleaning, and demanding conditions are common. Its IP69K thermoplastic enclosure is designed for high-pressure washdown environments, while the capacitive touch keypad has no moving parts, helping protect the indicator from wear and damage.
The indicator includes ColorZONE checkweighing, where the display changes colour to show under, accepted, or over target weights. With AC, DC, and rechargeable battery power options, RS232 communication, and support for multiple load cells, the 190 Storm is suitable for food processing, chemical, pharmaceutical, and washdown weighing systems.
Key Features
- IP69K-rated washdown enclosure
- High-pressure and high-temperature washdown protection
- Polycarbonate / thermoplastic enclosure
- Capacitive touch keypad with no moving parts
- Large 1-inch backlit LCD display
- ColorZONE checkweighing display
- Amber, green, and red target weight indication
- Built-in RS232 communication port
- AC, DC, and rechargeable battery power options
- Supports up to 6 load cells
- NTEP, OIML, and Measurement Canada approvals
Applications
- Food processing
- Chemical weighing areas
- Pharmaceutical environments
- Washdown weighing stations
- Harsh industrial weighing systems
| Power Requirements | 100 to 240 VAC, 50/60 Hz, 0.4A max. / 190DC: 10.5 to 30 VDC, 1.0A max. |
|---|---|
| Enclosure Size | 239 × 163 × 93 mm |
| Operating Temperature | -10°C to 40°C |
| Humidity | 90% maximum, non-condensing |
| Transducer Excitation | 5.18 VDC |
| Signal Input Range | 0.5 mV minimum to 40 mV maximum |
| Number of Load Cells | Up to 6 × 350 ohm load cells |
| Internal Resolution | 1 part in 16,777,216 |
| Sample Rate | 1 to 100 samples per second, selectable |
| Auto Zero Range | 0.5 or 1 through 9 divisions |
| Weighing Units | kg, g, plus additional unit options |
| Model | 190 Storm |
|---|---|
| Product Type | Washdown weight indicator |
| Enclosure Type | Thermoplastic IP69K wall or desk-mount enclosure |
| Display | 6-digit, 7-segment, 1-inch backlit LCD |
| Keypad | 7-key colour-coded capacitive touch keypad |
| Standard Communication | Bi-directional RS232 |
| Power Options | AC, DC, or optional rechargeable battery |
| Approvals | NTEP, OIML, Measurement Canada |
